Back ChemicalBook Home>CAS DataBase List>6290-03-5More Spectrum> (R)-(-)-1,3-Butanediol(6290-03-5) Raman

6290-03-5

(R)-(-)-1,3-Butanediol(6290-03-5) Raman

Molecular FormulaC4H10O2

Molecular Weight90.12

InChIInChI=1S/C4H10O2/c1-4(6)2-3-5/h4-6H,2-3H2,1H3/t4-/m1/s1

InChIKey PUPZLCDOIYMWBV-SCSAIBSYSA-N

SmilesC(O)C[C@H](O)C

  • (R)-(-)-1,3-Butanediol(6290-03-5) Raman
    Mass

    MS-NW-6067
    (R)-(-)-1,3-butanediol
    C4H10O2             (Mass of molecular ion:     90)


       Source Temperature: 260 °C
       Sample Temperature: 190 °C
       Reservoir, 75 eV


          14.0       1.4
          15.0       7.4
          18.0       3.0
          19.0      26.0
          26.0       2.9
          27.0      19.7
          28.0      28.4
          29.0      18.1
          30.0       1.8
          31.0      27.1
          37.0       1.1
          38.0       1.4
          39.0       8.2
          40.0       2.4
          41.0      13.1
          42.0      16.7
          43.0      92.4
          44.0      23.8
          45.0     100.0
          46.0       6.7
          47.0       2.3
          53.0       1.3
          54.0       1.7
          55.0       4.5
          57.0      26.0
          58.0       1.5
          62.0       1.1
          71.0       3.1
          72.0      32.3
          73.0       2.0
          75.0      11.8


400 MHz in CDCl3

  • (R)-(-)-1,3-Butanediol(6290-03-5) Raman

    1H NMR 399.65 MHz
    C4 H10 O2 0.05 ml : 0.5 ml CDCl3
    (R)-(-)-1,3-butanediol

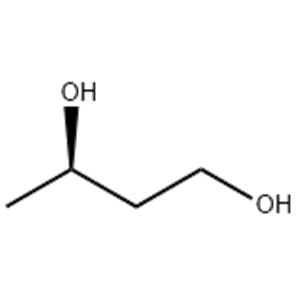

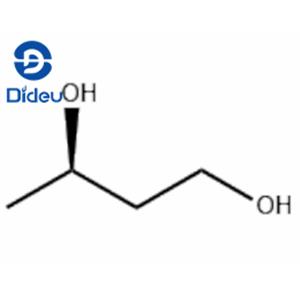

    ChemicalStructure
        Assign.     Shift(ppm)
    A *1 4.40 B *1 4.35 C 3.99 D 3.74 E 1.658 F 1.202

         Hz     ppm     Int.


       1759.77   4.404     88
       1739.99   4.354    110
       1736.94   4.347    109
       1597.53   3.998     60
       1592.53   3.985     61
       1509.03   3.776     68
       1500.61   3.755     61
       1500.24   3.754     61
       1492.68   3.735     74
        672.61   1.683    157
        666.63   1.669    348
        660.64   1.654    302
        659.42   1.650    161
        655.27   1.640     90
        653.81   1.636     95
        483.64   1.211    941
        477.29   1.195   1000


in CDCl3

  • (R)-(-)-1,3-Butanediol(6290-03-5) Raman

liquid film

  • (R)-(-)-1,3-Butanediol(6290-03-5) Raman

4880 A,200 M,liquid

  • (R)-(-)-1,3-Butanediol(6290-03-5) Raman

(R)-(-)-1,3-Butanediol(6290-03-5) Raman Atlas of Related Products

×
