22483-09-6

氨基乙醛缩二甲醇(22483-09-6)核磁图(1HNMR)

分子式:C4H11NO2

分子量: 105.14

InChI:InChI=1S/C4H11NO2/c1-6-4(3-5)7-2/h4H,3,5H2,1-2H3

InChIKey: QKWWDTYDYOFRJL-UHFFFAOYSA-N

Smiles:C(N)C(OC)OC

  • 图谱
    Mass

    MS-NW-2966
    aminoacetaldehyde dimethyl acetal
    C4H11NO2            (Mass of molecular ion:    105)


       Source Temperature: 280 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          15.0      13.0
          18.0       1.9
          27.0       1.3
          28.0       9.5
          29.0       7.7
          30.0      33.1
          31.0      22.3
          32.0       2.7
          33.0       1.5
          41.0       1.5
          42.0      20.7
          43.0       5.0
          44.0      18.8
          45.0       9.4
          47.0      26.7
          56.0       2.0
          58.0       4.7
          59.0       3.6
          72.0       1.3
          73.0       2.2
          74.0      24.6
          75.0     100.0
          76.0       3.4


90 MHz in CDCl3

  • 图谱

    1H NMR 89.56 MHz
    C4 H11 N O2 0.04 ml : 0.5 ml CDCl3
    aminoacetaldehyde dimethyl acetal
    ChemicalStructure
        Assign.     Shift(ppm)
    A 4.287 B 3.388 C 2.783 D 1.21

         Hz     ppm     Int.


        389.13   4.345     30
        383.88   4.287     61
        378.75   4.230     35
        303.44   3.389   1000
        251.63   2.810    175
        246.44   2.752    161
        108.44   1.211    237


in CDCl3

  • 图谱

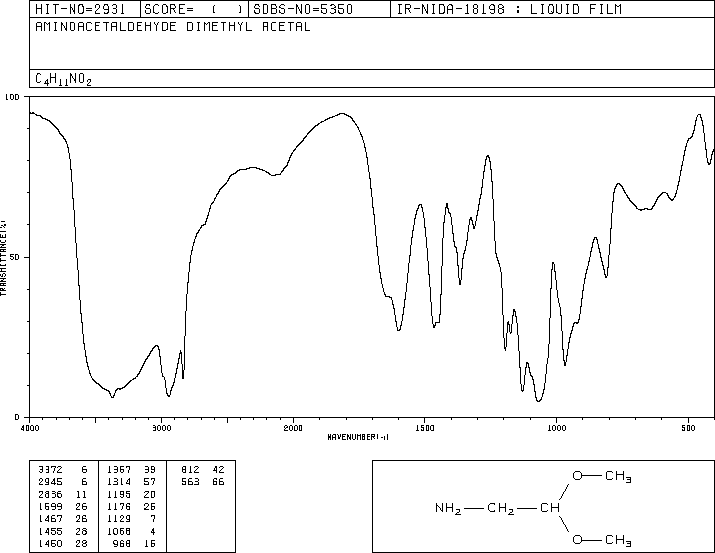

liquid film

  • 图谱

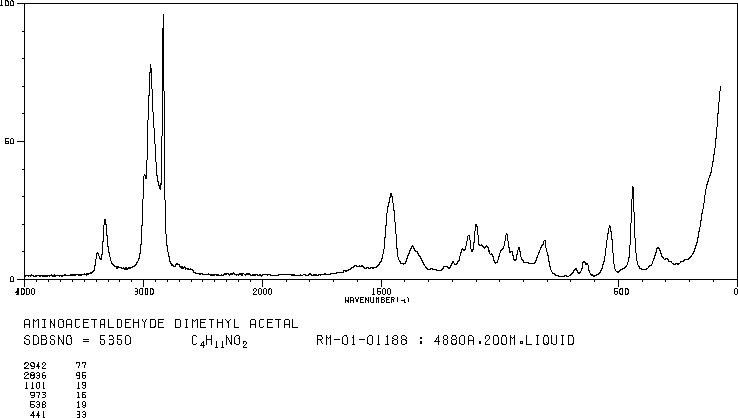

4880 A,200 M,liquid

  • 图谱

×
