4403-69-4

2-氨基苄胺(4403-69-4)红外图谱(IR2)

产品名称:2-氨基苄胺

CAS:4403-69-4

分子式:C7H10N2

分子量: 122.17

InChI:InChI=1S/C7H10N2/c8-5-6-3-1-2-4-7(6)9/h1-4H,5,8-9H2

InChIKey: GVOYKJPMUUJXBS-UHFFFAOYSA-N

Smiles:C1(CN)=CC=CC=C1N

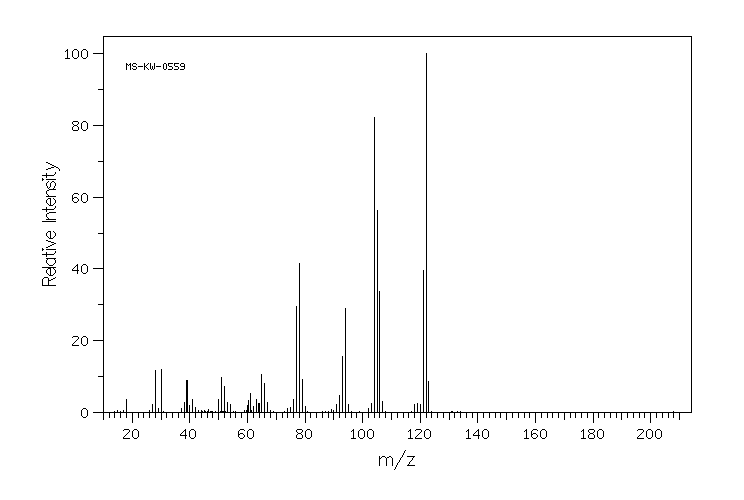

Mass

MS-KW-0559
2-aminobenzylamine
C7H10N2             (Mass of molecular ion:    122)

   Source Temperature: 230 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      18.0       3.6
      27.0       2.2
      28.0      11.6
      29.0       1.0
      30.0      12.0
      37.0       1.0
      38.0       2.6
      39.0       8.9
      40.0       1.8
      41.0       3.5
      42.0       1.4
      50.0       3.5
      51.0       9.6
      52.0       7.2
      53.0       2.8
      54.0       2.3
      60.0       1.9
      60.5       3.2
      61.0       5.2
      62.0       1.5
      63.0       3.5
      64.0       2.4
      65.0      10.4
      66.0       7.9
      67.0       2.8
      74.0       1.0
      75.0       1.3
      76.0       3.6
      77.0      29.5
      78.0      41.5
      79.0       9.1
      80.0       1.7
      91.0       2.2
      92.0       4.8
      93.0      15.7
      94.0      29.0
      95.0       2.2
     102.0       1.1
     103.0       2.4
     104.0      82.4
     105.0      56.2
     106.0      33.8
     107.0       3.1
     118.0       2.2
     119.0       2.5
     120.0       2.2
     121.0      39.5
     122.0     100.0
     123.0       8.5

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₇H₁₀N₂	0.037 g : 0.5 ml CDCl₃
2-aminobenzylamine

    Assign.     Shift(ppm)

     A           7.072
     B           7.023
     C           6.688
     D           6.649
     E           3.851

     Hz     ppm     Int.

   2835.94   7.094    165
   2834.36   7.090    186
   2828.25   7.075    279
   2826.91   7.072    322
   2820.81   7.056    188
   2819.22   7.052    223
   2812.63   7.036    251
   2812.14   7.035    268
   2811.04   7.032    244
   2810.55   7.031    225
   2805.18   7.017    281
   2804.69   7.016    299
   2804.20   7.015    253
   2803.59   7.013    258
   2803.11   7.012    237
   2684.58   6.716     29
   2681.04   6.707    232
   2679.81   6.704    265
   2677.25   6.697     49
   2673.59   6.688    406
   2672.49   6.685    455
   2666.26   6.670    209
   2665.04   6.667    242
   2661.99   6.659    371
   2661.14   6.657    333
   2654.18   6.640    335
   2653.20   6.637    310
   1776.62   4.444     14
   1540.29   3.853   1000
   1459.48   3.651     12
    599.49   1.500     14

in CDCl3
