返回ChemicalBook首页>CAS数据库列表>4920-95-0更多图谱> 3,3',4,4'-四甲基联苯(4920-95-0)质谱(MS)

4920-95-0

3,3',4,4'-四甲基联苯(4920-95-0)质谱(MS)

分子式:C16H18

分子量: 210.31

InChI:InChI=1S/C16H18/c1-11-5-7-15(9-13(11)3)16-8-6-12(2)14(4)10-16/h5-10H,1-4H3

InChIKey: YXBIAYXZUDJVEB-UHFFFAOYSA-N

Smiles:C1(C2=CC=C(C)C(C)=C2)=CC=C(C)C(C)=C1

  • 图谱
    Mass

    MS-IW-7000
    3,3',4,4'-tetramethylbiphenyl
    C16H18              (Mass of molecular ion:    210)


       Source Temperature: 150 °C
       Sample Temperature: 120 °C
       Direct, 75 eV


          76.0       2.1
          77.0       2.3
          78.0       1.0
          82.0       1.2
          82.5       1.4
          83.0       1.4
          89.0       5.4
          89.5       1.0
          90.0       7.5
          90.5       1.2
          91.0       1.6
          96.0       2.2
          96.5       1.3
          97.0       3.1
          97.5       1.6
         103.0       2.0
         104.0       3.4
         105.0       6.8
         105.5       1.1
         115.0       1.8
         128.0       1.4
         141.0       1.0
         152.0       2.4
         153.0       1.7
         165.0      10.3
         166.0       2.3
         167.0       1.4
         177.0       1.1
         178.0       8.5
         179.0      13.6
         180.0      10.7
         181.0       2.1
         189.0       1.2
         191.0       1.9
         192.0       1.3
         193.0       2.8
         194.0       3.1
         195.0      44.4
         196.0       7.4
         209.0      10.1
         210.0     100.0
         211.0      17.6
         212.0       1.4


KBr disc

  • 图谱

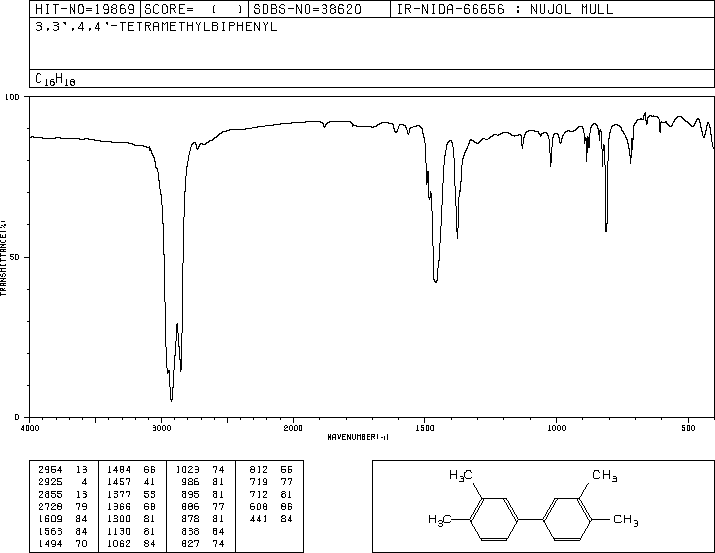

nujol mull

  • 图谱

×
