返回ChemicalBook首页>CAS数据库列表>616-91-1更多图谱> N-乙酰-L-半胱氨酸(616-91-1)Raman光谱

616-91-1

N-乙酰-L-半胱氨酸(616-91-1)Raman光谱

分子式:C5H9NO3S

分子量: 163.19

InChI:InChI=1S/C5H9NO3S/c1-3(7)6-4(2-10)5(8)9/h4,10H,2H2,1H3,(H,6,7)(H,8,9)/t4-/m0/s1

InChIKey: PWKSKIMOESPYIA-BYPYZUCNSA-N

Smiles:C(O)(=O)[C@H](CS)NC(C)=O

  • 图谱
    Mass

    MS-NW-2509
    N-acetyl-L-cysteine
    C5H9NO3S            (Mass of molecular ion:    163)


       Source Temperature: 190 °C
       Sample Temperature: 140 °C
       Direct, 75 eV


          15.0       7.2
          18.0       2.7
          27.0       2.5
          28.0       9.9
          29.0       1.0
          30.0       3.6
          41.0       2.3
          42.0       8.3
          43.0      83.6
          44.0       9.5
          45.0       4.0
          46.0       2.5
          47.0       5.0
          48.0       1.2
          57.0       6.9
          58.0       3.1
          59.0      13.0
          60.0     100.0
          61.0       2.7
          70.0       2.9
          71.0       1.7
          74.0      31.8
          75.0       5.9
          76.0      26.1
          78.0       1.1
          84.0       1.8
          85.0       2.9
          86.0       7.8
          87.0       2.9
          88.0       2.9
          99.0       8.7
         100.0       8.5
         101.0       1.0
         117.0       2.1
         118.0       3.3
         121.0       1.5
         130.0       1.0
         163.0       2.6


400 MHz in DMSO-d6

  • 图谱

    1H NMR 399.65 MHz
    C5 H9 N O3 S 0.039 g : 0.5 ml DMSO-d6
    N-acetyl-L-cysteine
    ChemicalStructure
        Assign.     Shift(ppm)
    A 13. B 8.19 C 4.385 D *1 2.84 E *1 2.74 F 2.432 G 1.885 J(B,C)=7.9HZ

         Hz     ppm     Int.


       3277.49   8.201     67
       3269.58   8.182     69
       1762.89   4.412     39
       1758.19   4.400     47
       1755.63   4.393     72
       1750.50   4.381     72
       1747.72   4.374     54
       1743.02   4.362     42
       1144.49   2.864     21
       1131.03   2.831     38
       1100.47   2.754     33
       1094.06   2.738     29
        971.84   2.432     27
        753.45   1.886   1000


KBr disc

  • 图谱

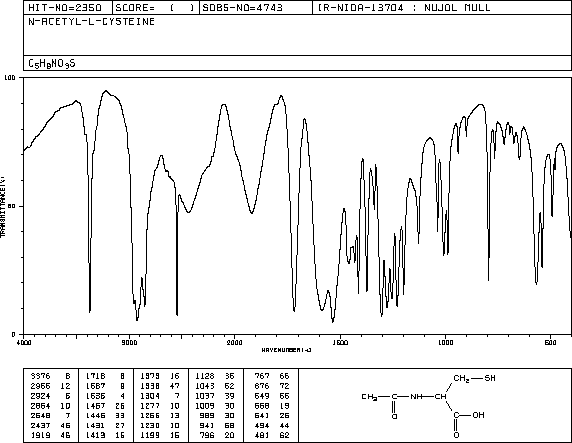

nujol mull

  • 图谱

  • 图谱

×
