Back ChemicalBook Home>CAS DataBase List>109-92-2More Spectrum> Ethyl vinyl ether(109-92-2) IR1

109-92-2

Ethyl vinyl ether(109-92-2) IR1

Product NameEthyl vinyl ether

CAS109-92-2

Molecular FormulaC4H8O

Molecular Weight72.11

InChIInChI=1S/C4H8O/c1-3-5-4-2/h3H,1,4H2,2H3

InChIKey FJKIXWOMBXYWOQ-UHFFFAOYSA-N

SmilesC=COCC

  • Ethyl vinyl ether(109-92-2) IR1

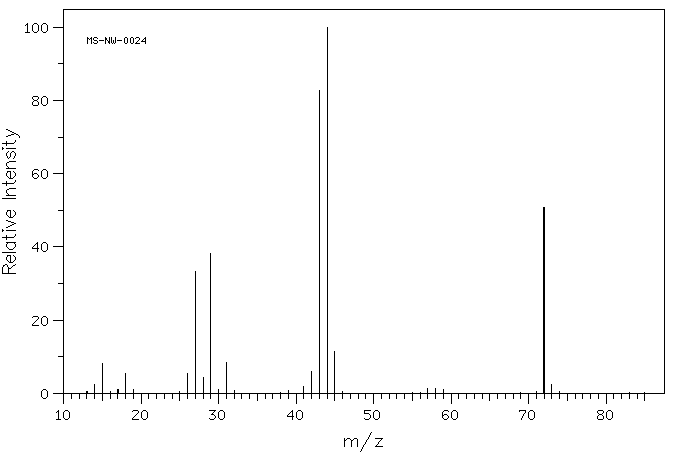

    Mass

    MS-NW-0024
    ethyl vinyl ether
    C4H8O               (Mass of molecular ion:     72)


       Source Temperature: 200 °C
       Sample Temperature:  65 °C
       Reservoir, 75 eV


          14.0       2.3
          15.0       8.1
          17.0       1.1
          18.0       5.3
          19.0       1.0
          26.0       5.3
          27.0      33.3
          28.0       4.3
          29.0      38.3
          30.0       1.0
          31.0       8.3
          41.0       1.8
          42.0       5.9
          43.0      82.8
          44.0     100.0
          45.0      11.3
          57.0       1.3
          58.0       1.2
          59.0       1.1
          72.0      50.9
          73.0       2.5


parameter in CDCl3

  • Ethyl vinyl ether(109-92-2) IR1

    1H NMR 300 MHz
    C4 H8 O 20 wt% in CDCl3
    ethyl vinyl ether
    ChemicalStructure
        Parameter     ppm  Hz
    D(A) 3.96 D(B) 4.17 D(C) 6.46 D(D) 3.74 D(E) 1.27 J(A,B) -1.87 J(A,C) 6.88 J(A,D) 0.0 J(A,E) 0.0 J(B,C) 14.42 J(B,D) 0.0 J(B,E) 0.0 J(C,D) 0.4 J(C,E) 0.0 J(D,E) 7.0 BRUEGEL,W. HANDBOOK OF NMR SPECTRAL PARAMETER 40.2.2.2

         Hz     ppm     Int.


       1948.72   6.496    120
       1941.87   6.473    124
       1934.34   6.448    127
       1927.49   6.425    129
       1259.07   4.197    175
       1257.27   4.191    183
       1244.69   4.149    166
       1242.84   4.143    177
       1192.36   3.975    182
       1190.51   3.968    173
       1185.46   3.952    180
       1183.66   3.946    169
       1132.55   3.775    131
       1125.56   3.752    387
       1118.56   3.729    394
       1111.61   3.705    139
        388.00   1.293    509
        381.01   1.270   1000
        374.01   1.247    495


in CDCl3

  • Ethyl vinyl ether(109-92-2) IR1

CCl4 solution

  • Ethyl vinyl ether(109-92-2) IR1

liquid film

  • Ethyl vinyl ether(109-92-2) IR1

4880 A,200 M,liquid

  • Ethyl vinyl ether(109-92-2) IR1

Ethyl vinyl ether(109-92-2) IR1 Atlas of Related Products

×
