Back ChemicalBook Home>CAS DataBase List>156-83-2More Spectrum> 4-Chloro-2,6-diaminopyrimidine(156-83-2) MS

156-83-2

4-Chloro-2,6-diaminopyrimidine(156-83-2) MS

Molecular FormulaC4H5ClN4

Molecular Weight144.56

InChIInChI=1S/C4H5ClN4/c5-2-1-3(6)9-4(7)8-2/h1H,(H4,6,7,8,9)

InChIKey QJIUMVUZDYPQRT-UHFFFAOYSA-N

SmilesC1(N)=NC(Cl)=CC(N)=N1

  • 4-Chloro-2,6-diaminopyrimidine(156-83-2) MS
    Mass

    MS-NW-9997
    6-chloro-2,4-pyrimidinediamine
    C4H5ClN4            (Mass of molecular ion:    144)


       Source Temperature: 170 °C
       Sample Temperature:  90 °C
       Direct, 75 eV


          18.0       1.9
          28.0       5.7
          38.0       1.4
          39.0       2.8
          40.0       6.8
          41.0       1.9
          42.0       2.4
          43.0      29.9
          53.0       1.2
          55.0       1.1
          62.0       1.3
          65.0       1.1
          66.0       5.2
          67.0      47.8
          68.0       3.1
          74.0       1.6
          89.0       1.3
          92.0       2.9
         109.0      66.3
         110.0       3.9
         116.0       1.8
         117.0       4.4
         119.0       1.4
         128.0       1.5
         144.0     100.0
         145.0       8.2
         146.0      32.6
         147.0       2.6


400 MHz in DMSO-d6

  • 4-Chloro-2,6-diaminopyrimidine(156-83-2) MS

    1H NMR 399.65 MHz
    C4 H5 Cl N4 0.033 g : 0.5 ml DMSO-d6
    6-chloro-2,4-pyrimidinediamine

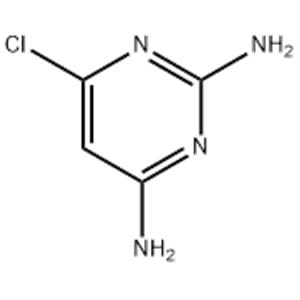

    ChemicalStructure
        Assign.     Shift(ppm)
    A *1 6.61 B *1 6.37 C 5.717

         Hz     ppm     Int.


       2643.19   6.614    162
       2545.41   6.370    199
       2284.79   5.717   1000


in DMSO-d6

  • 4-Chloro-2,6-diaminopyrimidine(156-83-2) MS

KBr disc

  • 4-Chloro-2,6-diaminopyrimidine(156-83-2) MS

nujol mull

  • 4-Chloro-2,6-diaminopyrimidine(156-83-2) MS

  • 4-Chloro-2,6-diaminopyrimidine(156-83-2) MS
