Tricyclohumuladiol(21446-02-6) IR1

Mass

MS-IW-8316

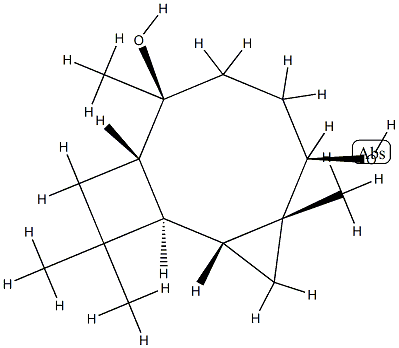

(1R-(1alpha,2beta,4beta,5beta,8beta,9beta))-4,8,11,11-tetramethyltricyclo(7.2.0.0(2,4))undecane-5,8-diol
C15H26O2            (Mass of molecular ion:    238)

   Source Temperature: 170 °C
   Sample Temperature: 140 °C
   Direct, 75 eV

      17.0       9.6
      18.0      47.6
      27.0      12.4
      28.0       2.8
      29.0      14.1
      31.0       1.4
      39.0      19.4
      40.0       3.5
      41.0      55.5
      42.0       3.4
      43.0      55.3
      44.0       1.8
      45.0       2.5
      50.0       1.3
      51.0       7.4
      52.0       3.1
      53.0      20.8
      54.0       3.5
      55.0      41.2
      56.0       4.1
      57.0      11.0
      58.0       2.9
      59.0      11.0
      63.0       3.3
      64.0       2.3
      65.0      13.9
      66.0       4.2
      67.0      42.2
      68.0      15.8
      69.0      34.9
      70.0       5.0
      71.0      21.8
      72.0       4.6
      73.0       1.0
      76.0       1.8
      77.0      32.1
      78.0      11.1
      79.0      46.1
      80.0      16.2
      81.0      47.5
      82.0      28.0
      83.0      18.0
      84.0      13.3
      85.0      13.2
      86.0       3.6
      87.0       1.0
      89.0       1.8
      91.0      70.6
      92.0      20.2
      93.0      71.8
      94.0      27.9
      95.0      61.8
      96.0      32.3
      97.0      16.5
      98.0       3.3
      99.0       1.7
     101.0       1.9
     102.0       1.6
     103.0       6.5
     104.0       6.1
     105.0      70.7
     106.0      37.6
     107.0      55.7
     108.0      27.2
     109.0      59.5
     110.0      19.9
     111.0      12.6
     112.0       4.2
     113.0       1.9
     115.0      15.0
     116.0       6.6
     117.0      27.0
     118.0       9.4
     119.0      61.1
     120.0      32.5
     121.0      47.7
     122.0      17.6
     123.0      24.3
     124.0       6.0
     125.0       9.0
     126.0       2.3
     127.0       4.4
     128.0      15.2
     129.0      15.6
     130.0       8.9
     131.0      69.0
     132.0      20.0
     133.0      40.9
     134.0      21.7
     135.0      23.6
     136.0      12.2
     137.0      12.2
     138.0      38.2
     139.0       8.7
     140.0       2.2
     141.0       7.1
     142.0       6.3
     143.0      11.7
     144.0      10.1
     145.0      68.9
     146.0      34.8
     147.0      34.6
     148.0       7.7
     149.0      15.5
     150.0       5.0
     151.0       7.6
     152.0       5.5
     153.0       3.4
     154.0       1.7
     155.0       3.1
     156.0       3.1
     157.0      11.5
     158.0       6.9
     159.0      84.4
     160.0      20.2
     161.0      16.4
     162.0      17.8
     163.0       8.2
     164.0      10.2
     165.0       4.3
     166.0       1.4
     167.0       1.1
     169.0       1.0
     170.0       1.6
     171.0       3.6
     172.0       3.7
     173.0      21.7
     174.0       9.2
     175.0       4.2
     176.0       2.6
     177.0      12.4
     178.0       4.7
     179.0       1.7
     183.0       3.1
     185.0       8.3
     186.0       1.8
     187.0     100.0
     188.0      15.7
     189.0       5.7
     190.0       1.0
     191.0       4.5
     192.0       1.8
     198.0       2.4
     200.0       6.1
     201.0       3.1
     202.0      79.4
     203.0      13.8
     204.0       4.4
     205.0      11.9
     206.0       1.8
     220.0      16.3
     221.0       2.9
