1134-36-7

3-氨基-4-羟基联苯(1134-36-7)红外图谱(IR1)

分子式:C12H11NO

分子量: 185.22

InChI:InChI=1S/C12H11NO/c13-11-8-10(6-7-12(11)14)9-4-2-1-3-5-9/h1-8,14H,13H2

InChIKey: IGIDZGNPFWGICD-UHFFFAOYSA-N

Smiles:C1(C2=CC=CC=C2)=CC=C(O)C(N)=C1

  • 图谱
    Mass

    MS-NW-3759
    3-aminobiphenyl-4-ol
    C12H11NO            (Mass of molecular ion:    185)


       Source Temperature: 180 °C
       Sample Temperature: 120 °C
       Direct, 75 eV


          28.0       1.0
          39.0       1.1
          51.0       2.0
          52.0       1.0
          63.0       1.5
          65.0       1.4
          77.0       2.3
          78.0       1.5
          80.0       1.2
          92.5       3.6
         102.0       1.0
         115.0       2.2
         127.0       1.7
         128.0       3.0
         129.0       2.0
         130.0       1.7
         139.0       6.7
         140.0       3.4
         141.0       1.0
         154.0       1.4
         156.0      12.2
         157.0       1.9
         184.0       5.9
         185.0     100.0
         186.0      13.7
         187.0       1.1


90 MHz in DMSO-d6

  • 图谱

    1H NMR 89.56 MHz
    C12 H11 N O 0.042 g : 0.5 ml DMSO-d6
    3-aminobiphenyl-4-ol

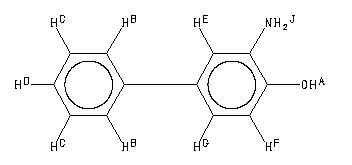

    ChemicalStructure
        Assign.     Shift(ppm)
    A 9. B 7.49 C 7.37 D 7.26 E 6.94 F 6.75 G 6.73 J 4.6

         Hz     ppm     Int.


        678.06   7.572    111
        675.88   7.547    158
        673.63   7.522     94
        671.50   7.498    227
        669.38   7.475    406
        667.94   7.459    570
        666.06   7.438    289
        663.69   7.411    106
        660.06   7.371    431
        658.13   7.349    135
        656.50   7.331     70
        653.81   7.301    257
        651.88   7.279    328
        649.75   7.255    149
        646.31   7.217     93
        645.50   7.208    142
        641.13   7.159     31
        640.44   7.151     31
        639.19   7.138     34
        622.63   6.953    257
        621.56   6.941    384
        620.19   6.925    275
        611.38   6.827     30
        604.19   6.747   1000
        603.25   6.736    653
        414.31   4.627     44


in DMSO-d6

  • 图谱

KBr disc

  • 图谱

nujol mull

  • 图谱

×
