1567-89-1

丙酮2,4-二硝基苯腙(1567-89-1)红外图谱(IR1)

产品名称:丙酮2,4-二硝基苯腙

CAS:1567-89-1

分子式:C9H10N4O4

分子量: 238.2

InChI:InChI=1S/C9H10N4O4/c1-6(2)10-11-8-4-3-7(12(14)15)5-9(8)13(16)17/h3-5,11H,1-2H3

InChIKey: YGIXYAIGWMAGIB-UHFFFAOYSA-N

Smiles:C/C(=N\NC1=CC=C([N+]([O-])=O)C=C1[N+]([O-])=O)/C

¹HNMR

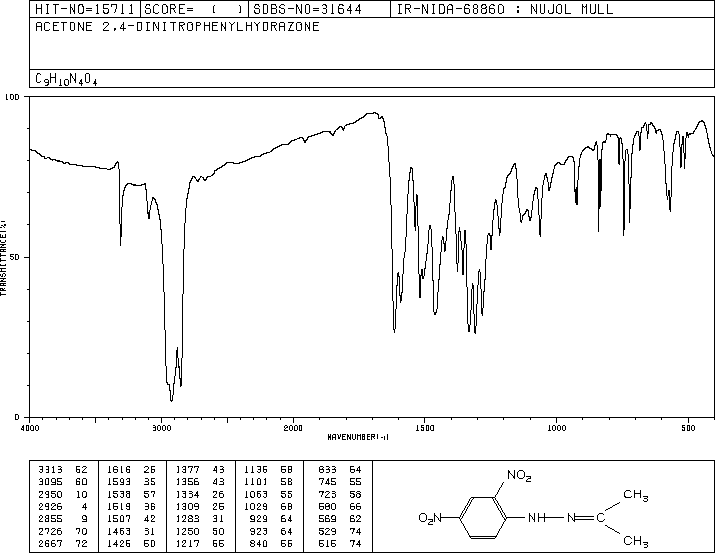

IR1

IR2

Mass

MS-IW-6503
acetone 2,4-dinitrophenylhydrazone
C9H10N4O4           (Mass of molecular ion:    238)

   Source Temperature: 150 °C
   Sample Temperature: 130 °C
   Direct, 75 eV

      15.0       3.9
      27.0       1.5
      28.0       7.0
      29.0       3.0
      30.0       4.9
      38.0       1.2
      39.0       6.4
      40.0       1.6
      41.0      12.9
      42.0       7.5
      43.0       5.1
      50.0       1.6
      51.0       6.5
      52.0       3.1
      53.0       1.0
      54.0       1.7
      55.0       1.0
      56.0      19.5
      57.0       1.9
      59.0      26.9
      62.0       2.8
      63.0       5.7
      64.0       2.4
      65.0       2.3
      66.0       1.4
      68.0       1.0
      74.0       1.7
      75.0       5.4
      76.0       4.1
      77.0       6.8
      78.0      13.2
      79.0      18.5
      80.0       2.0
      84.0       4.9
      89.0       1.4
      90.0       2.5
      91.0       5.8
      92.0       4.3
      93.0       1.5
     102.0       1.4
     103.0       1.7
     104.0       4.0
     105.0       4.2
     106.0       3.2
     107.0       1.7
     115.0       5.8
     116.0       2.5
     117.0       4.7
     118.0       2.3
     119.0       2.6
     122.0       9.1
     123.0       1.2
     130.0       1.5
     131.0       1.8
     132.0       1.0
     135.0       4.4
     136.0       1.2
     145.0       3.0
     146.0       1.6
     147.0       1.4
     152.0      17.9
     153.0       2.9
     163.0       1.1
     165.0       1.8
     180.0      10.5
     181.0      15.7
     182.0       1.6
     196.0       1.6
     222.0       1.0
     238.0     100.0
     239.0      12.5
     240.0       1.6
