返回ChemicalBook首页>CAS数据库列表>1666-17-7更多图谱> 苯甲醛对甲苯磺酰腙(1666-17-7)质谱(MS)

1666-17-7

苯甲醛对甲苯磺酰腙(1666-17-7)质谱(MS)

分子式:C14H14N2O2S

分子量: 274.34

InChI:InChI=1S/C14H14N2O2S/c1-12-7-9-14(10-8-12)19(17,18)16-15-11-13-5-3-2-4-6-13/h2-11,16H,1H3

InChIKey: FZFLTDNAHASQQC-UHFFFAOYSA-N

Smiles:C1(S(NN=CC2=CC=CC=C2)(=O)=O)=CC=C(C)C=C1

  • 图谱
    Mass

    MS-IW-0947
    benzaldehyde tosylhydrazone
    C14H14N2O2S         (Mass of molecular ion:    274)


       Source Temperature: 170 °C
       Sample Temperature: 120 °C
       Direct, 75 eV


          27.0       1.2
          28.0       5.4
          38.0       2.5
          39.0      12.6
          40.0       2.1
          41.0       2.6
          43.0       1.0
          44.0       1.0
          45.0       3.1
          48.0       1.1
          50.0       4.1
          51.0       9.5
          52.0       1.8
          61.0       1.3
          62.0       4.4
          63.0      15.4
          64.0       8.5
          65.0      42.8
          66.0       3.1
          67.0       1.8
          74.0       1.0
          75.0       1.3
          76.0       1.2
          77.0      13.6
          78.0       3.3
          79.0       5.2
          80.0       2.1
          89.0      43.7
          90.0     100.0
          91.0      68.6
          92.0      68.4
          93.0       5.1
         102.0       1.3
         104.0       1.3
         105.0       5.4
         106.0       5.6
         107.0       7.6
         108.0       4.9
         111.0       1.4
         118.0      65.2
         119.0      37.8
         120.0       3.1
         121.0       2.3
         122.0       1.5
         123.0       2.2
         124.0       2.9
         139.0      10.6
         140.0       5.5
         141.0       1.0
         155.0       1.6
         156.0      20.9
         157.0       2.1
         158.0       1.1
         165.0       1.7
         178.0       1.1
         179.0       1.5
         180.0       1.5
         214.0       1.1
         274.0      20.0
         275.0       3.7
         276.0       1.2


KBr disc

  • 图谱

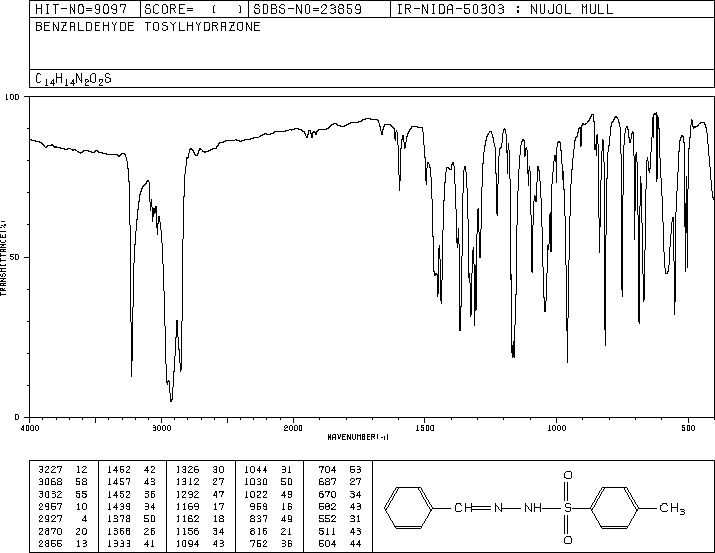

nujol mull

  • 图谱

×
