39905-50-5

4-戊氧基苯胺(39905-50-5)核磁图(1HNMR)

产品名称:4-戊氧基苯胺

CAS:39905-50-5

分子式:C11H17NO

分子量: 179.26

InChI:InChI=1S/C11H17NO/c1-2-3-4-9-13-11-7-5-10(12)6-8-11/h5-8H,2-4,9,12H2,1H3

InChIKey: QZLNSNIHXKQIIS-UHFFFAOYSA-N

Smiles:C1(N)=CC=C(OCCCCC)C=C1

  • 图谱

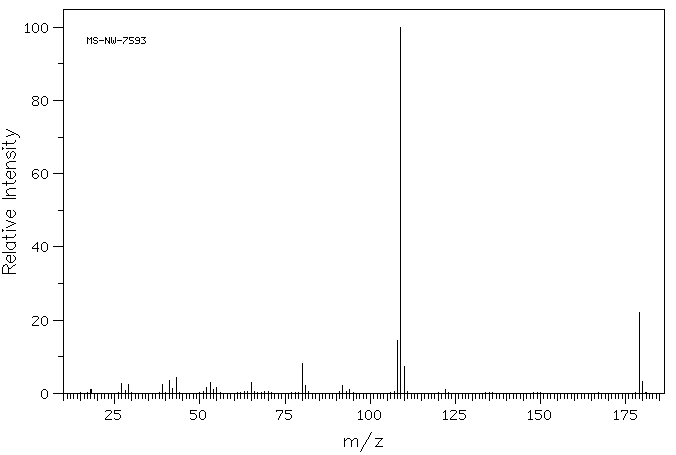

    Mass

    MS-NW-7593
    p-pentyloxyaniline
    C11H17NO            (Mass of molecular ion:    179)


       Source Temperature: 240 °C
       Sample Temperature: 170 °C
       Reservoir, 75 eV


          18.0       1.1
          27.0       2.6
          29.0       2.3
          39.0       2.4
          41.0       3.5
          42.0       1.3
          43.0       4.2
          52.0       1.7
          53.0       3.1
          54.0       1.1
          55.0       1.7
          65.0       3.0
          80.0       8.2
          81.0       2.1
          92.0       2.1
          94.0       1.1
         108.0      14.4
         109.0     100.0
         110.0       7.3
         122.0       1.1
         179.0      22.2
         180.0       3.2


90 MHz in CDCl3

  • 图谱

    1H NMR 89.56 MHz
    C11 H17 N O 0.05 ml : 0.5 ml CDCl3
    p-pentyloxyaniline
    ChemicalStructure
        Assign.     Shift(ppm)
    A 6.70 B 6.58 C 3.839 D 3.33 E 1.73 F 1.43 G 1.31 J 0.91

         Hz     ppm     Int.


        609.31   6.804     44
        607.13   6.780    214
        606.50   6.772    176
        604.31   6.748    136
        600.75   6.708    206
        598.06   6.678    979
        595.69   6.652    260
        594.25   6.636    270
        591.88   6.609   1000
        589.13   6.579    218
        585.63   6.539    159
        583.44   6.515    200
        582.81   6.508    228
        580.44   6.482     52
        350.75   3.917    275
        348.31   3.890     69
        344.44   3.846    665
        338.00   3.775    390
        298.50   3.333    352
         81.38   0.909    617


in CDCl3

  • 图谱

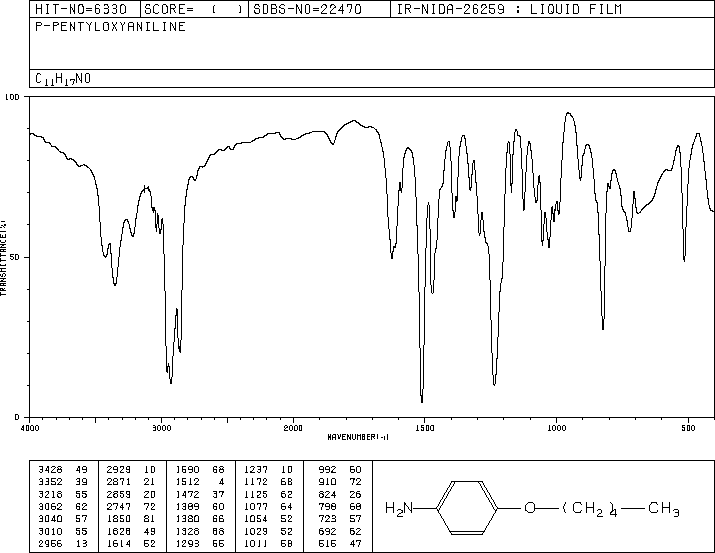

liquid film

  • 图谱

×
