507-70-0

冰片(507-70-0)Raman光谱

产品名称:冰片

CAS:507-70-0

分子式:C10H18O

分子量: 154.25

InChI:InChI=1/C10H18O/c1-9(2)7-4-5-10(9,3)8(11)6-7/h7-8,11H,4-6H2,1-3H3/t7-,8+,10+/s3

InChIKey: DTGKSKDOIYIVQL-SCAUNJPWNA-N

Smiles:[C@]12(C)C(C)(C)[C@]([H])(CC1)C[C@@H]2O |&1:0,5,10,r|

  • 图谱
    Mass

    MS-NW-0600
    borneol
    C10H18O             (Mass of molecular ion:    154)


       Source Temperature: 260 °C
       Sample Temperature: 150 °C
       Reservoir, 75 eV


          18.0       2.4
          27.0       5.8
          28.0       1.2
          29.0       5.0
          39.0       7.2
          40.0       1.4
          41.0      18.0
          42.0       1.5
          43.0       7.5
          51.0       1.3
          53.0       4.5
          54.0       1.0
          55.0      11.0
          56.0       1.5
          57.0       2.4
          59.0       1.5
          65.0       1.5
          67.0       9.9
          68.0       2.4
          69.0       7.7
          70.0       2.3
          71.0       6.6
          72.0       3.0
          77.0       3.2
          79.0       4.9
          80.0       1.5
          81.0       4.4
          82.0       5.7
          83.0       4.3
          84.0       3.9
          85.0       1.1
          91.0       2.7
          92.0       3.3
          93.0      11.9
          94.0       2.3
          95.0     100.0
          96.0       8.4
          97.0       1.8
          99.0       1.0
         105.0       1.6
         107.0       2.3
         108.0       3.3
         109.0       3.0
         110.0      16.4
         111.0       4.6
         121.0       9.0
         136.0       6.8
         139.0       9.6
         140.0       1.0


CCl4 solution

  • 图谱

KBr disc

  • 图谱

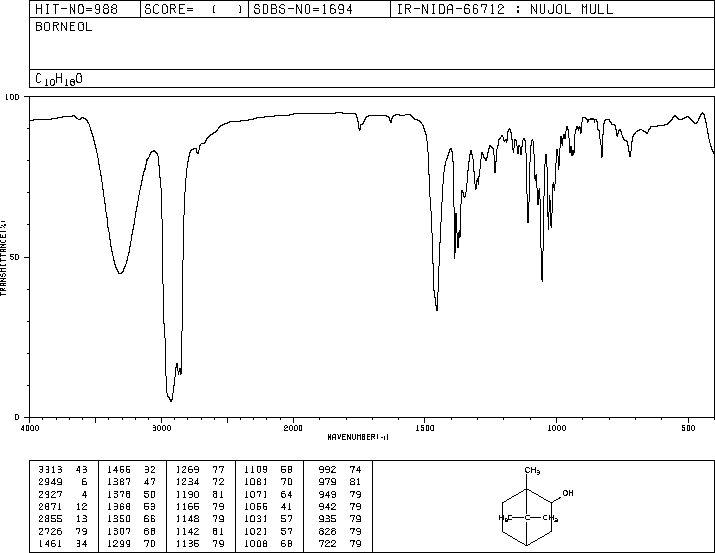

nujol mull

  • 图谱

4880 A,200 M,powder

  • 图谱

×
