557-40-4

烯丙基醚(557-40-4)Raman光谱

产品名称:烯丙基醚

CAS:557-40-4

分子式:C6H10O

分子量: 98.14

InChI:InChI=1S/C6H10O/c1-3-5-7-6-4-2/h3-4H,1-2,5-6H2

InChIKey: ATVJXMYDOSMEPO-UHFFFAOYSA-N

Smiles:O(CC=C)CC=C

  • 图谱

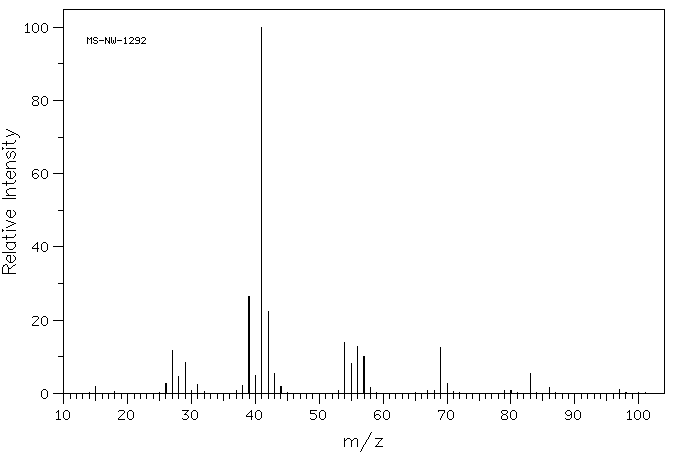

    Mass

    MS-NW-1292
    diallyl ether
    C6H10O              (Mass of molecular ion:     98)


       Source Temperature: 250 °C
       Sample Temperature: 180 °C
       Reservoir, 75 eV


          15.0       1.8
          26.0       2.6
          27.0      11.7
          28.0       4.6
          29.0       8.4
          31.0       2.3
          38.0       2.2
          39.0      26.6
          40.0       4.8
          41.0     100.0
          42.0      22.3
          43.0       5.5
          44.0       1.8
          54.0      13.8
          55.0       8.1
          56.0      12.9
          57.0      10.2
          58.0       1.7
          69.0      12.4
          70.0       2.6
          83.0       5.3
          86.0       1.6
          97.0       1.1


90 MHz in CDCl3

  • 图谱

    1H NMR 89.56 MHz
    C6 H10 O 0.04 ml : 0.5 ml CDCl3
    diallyl ether
    ChemicalStructure
        Assign.     Shift(ppm)
    A 5.906 B 5.27 C 5.17 D 3.987

         Hz     ppm     Int.


        551.19   6.155     95
        545.63   6.093    189
        541.13   6.043    126
        540.25   6.033    113
        535.63   5.981    227
        533.88   5.962    170
        530.31   5.922    129
        528.31   5.899    311
        523.81   5.849    217
        522.94   5.839    202
        518.31   5.788    394
        513.00   5.729    244
        483.13   5.395    160
        481.69   5.379    343
        480.94   5.371    292
        480.13   5.361    250
        479.56   5.355    533
        478.13   5.339    264
        470.75   5.257    222
        469.50   5.243    460
        468.31   5.230    312
        467.38   5.219    310
        466.19   5.206    184
        464.38   5.186    266
        463.69   5.178    144
        462.88   5.169    175
        462.25   5.162    265
        460.81   5.146    280
        459.50   5.131    324
        458.63   5.121    187
        458.25   5.117    212
        457.38   5.107    276
        456.19   5.094    144
        361.13   4.033    640
        359.94   4.019    954
        358.50   4.003    685
        355.75   3.973    608
        354.38   3.957   1000
        353.00   3.942    676


in CDCl3

  • 图谱

CCl4 solution

  • 图谱

liquid film

  • 图谱

4880 A,200 M,liquid

  • 图谱

×
