621-42-1

N-(3-羟基苯基)乙酰胺(621-42-1)质谱(MS)

分子式:C8H9NO2

分子量: 151.16

InChI:InChI=1S/C8H9NO2/c1-6(10)9-7-3-2-4-8(11)5-7/h2-5,11H,1H3,(H,9,10)

InChIKey: QLNWXBAGRTUKKI-UHFFFAOYSA-N

Smiles:C(NC1=CC=CC(O)=C1)(=O)C

  • 图谱

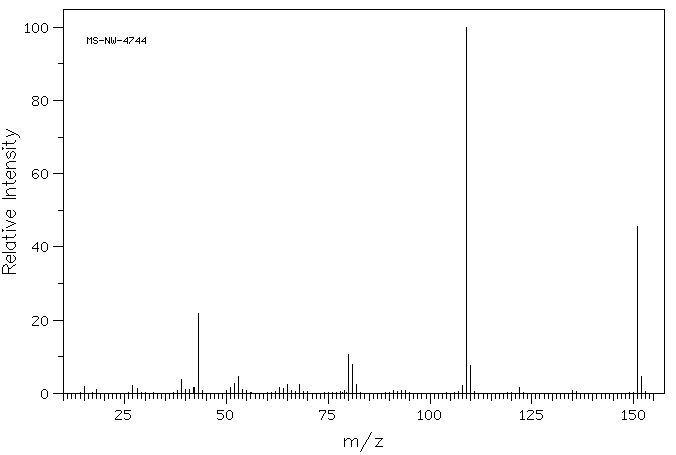

    Mass

    MS-NW-4744
    3'-hydroxyacetanilide
    C8H9NO2             (Mass of molecular ion:    151)


       Source Temperature: 160 °C
       Sample Temperature: 130 °C
       Direct, 75 eV


          15.0       1.8
          18.0       1.0
          27.0       2.1
          28.0       1.3
          39.0       3.8
          40.0       1.0
          41.0       1.0
          42.0       1.5
          43.0      21.9
          51.0       1.6
          52.0       2.6
          53.0       4.6
          54.0       1.1
          63.0       1.6
          64.0       1.4
          65.0       2.4
          68.0       2.4
          80.0      10.5
          81.0       7.9
          82.0       2.3
         108.0       2.2
         109.0     100.0
         110.0       7.6
         122.0       1.7
         151.0      45.7
         152.0       4.7


90 MHz in CDCl3

  • 图谱

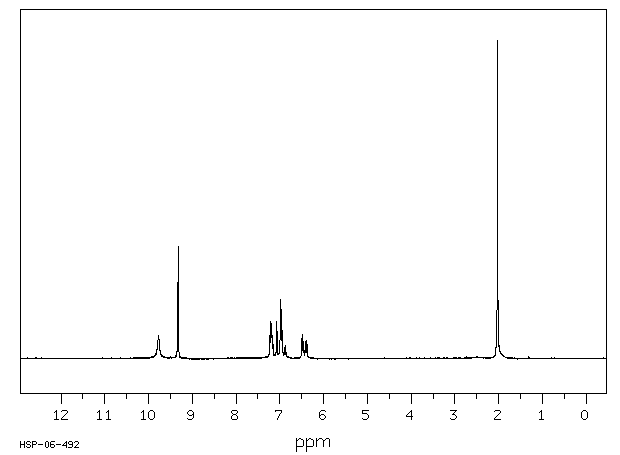

    1H NMR 89.56 MHz
    C8 H9 N O2 0.050 g : 0.5 ml CDCl3
    3'-hydroxyacetanilide
    ChemicalStructure
        Assign.     Shift(ppm)
    A 9.77 B 9.33 C 7.203 D 7.04 E 6.94 F 6.442 G 2.025

         Hz     ppm     Int.


        875.17   9.772     71
        835.18   9.326    354
        647.24   7.227     71
        645.19   7.204    116
        643.36   7.184     77
        641.09   7.159     47
        633.25   7.071    115
        625.49   6.985    185
        623.51   6.962    153
        621.90   6.944     88
        617.36   6.894     34
        615.53   6.873     40
        582.28   6.502     63
        580.37   6.481     74
        580.00   6.477     77
        578.25   6.457     55
        575.02   6.421     52
        573.12   6.400     55
        572.46   6.392     58
        570.78   6.374     44
        181.42   2.026   1000


KBr disc

  • 图谱

nujol mull

  • 图谱

  • 图谱

×
