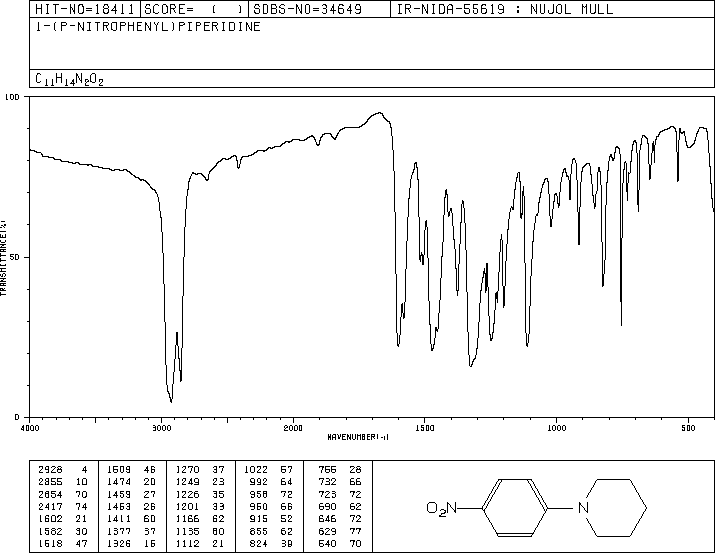

1-(4-硝基苯基)哌啶(6574-15-8)红外图谱(IR1)
分子式:C11H14N2O2
分子量: 206.24
InChI:InChI=1S/C11H14N2O2/c14-13(15)11-6-4-10(5-7-11)12-8-2-1-3-9-12/h4-7H,1-3,8-9H2
InChIKey: SGPLAXFUDTWHRS-UHFFFAOYSA-N
Smiles:N1(C2=CC=C([N+]([O-])=O)C=C2)CCCCC1
-
![图谱](https://www.chemicalbook.com/Spectrum/6574-15-8_MS.gif)

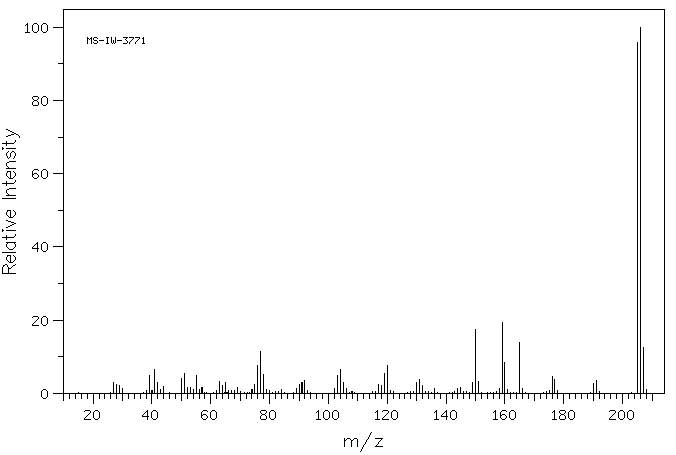

Mass
MS-IW-3771
1-(p-nitrophenyl)piperidine
C11H14N2O2 (Mass of molecular ion: 206)
Source Temperature: 120 °C
Sample Temperature: 90 °C
Direct, 75 eV
27.0 3.0
28.0 2.3
29.0 2.2
30.0 1.2
39.0 4.8
41.0 6.6
42.0 3.0
43.0 1.0
44.0 1.8
50.0 4.1
51.0 5.3
52.0 1.6
53.0 1.6
54.0 1.0
55.0 4.9
56.0 1.1
57.0 1.7
63.0 3.2
64.0 2.1
65.0 3.1
69.0 1.5
74.0 1.0
75.0 2.5
76.0 7.6
77.0 11.5
78.0 5.2
79.0 1.1
84.0 1.0
89.0 1.4
90.0 2.3
91.0 3.1
92.0 3.5
102.0 1.2
103.0 5.0
104.0 6.4
105.0 2.9
106.0 1.4
117.0 2.4
118.0 2.2
119.0 5.4
120.0 7.6
130.0 3.0
131.0 3.9
132.0 2.1
136.0 1.2
144.0 1.3
145.0 1.6
149.0 3.0
150.0 17.4
151.0 3.3
158.0 1.2
159.0 19.4
160.0 8.4
161.0 1.1
165.0 13.9
166.0 1.3
176.0 4.6
177.0 3.9
190.0 2.6
191.0 3.4
205.0 95.9
206.0 100.0
207.0 12.5
208.0 1.1
