729-43-1

二苯乙酮腙(729-43-1)质谱(MS)

产品名称:二苯乙酮腙

CAS:729-43-1

分子式:C16H16N2

分子量: 236.31

InChI:InChI=1S/C16H16N2/c1-13(15-9-5-3-6-10-15)17-18-14(2)16-11-7-4-8-12-16/h3-12H,1-2H3/b17-13+,18-14+

InChIKey: MOKMQSIJAHPSQX-HBKJEHTGSA-N

Smiles:C1(C=CC=CC=1)/C(/C)=N/N=C(\C)/C1C=CC=CC=1

IR1

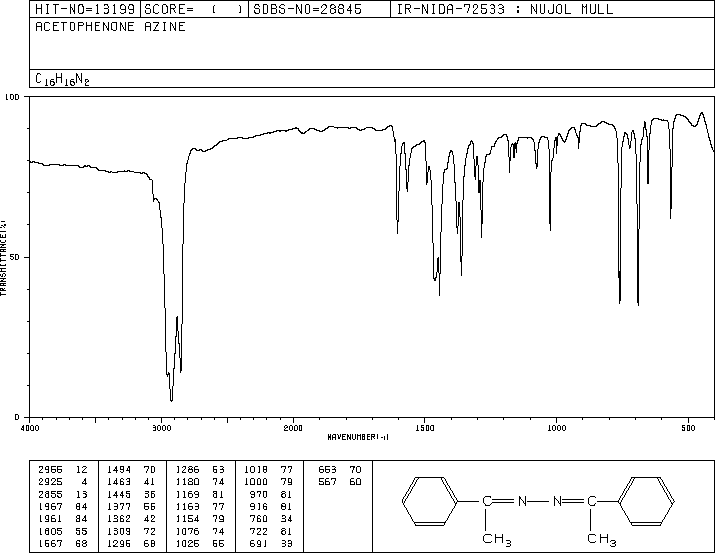

IR2

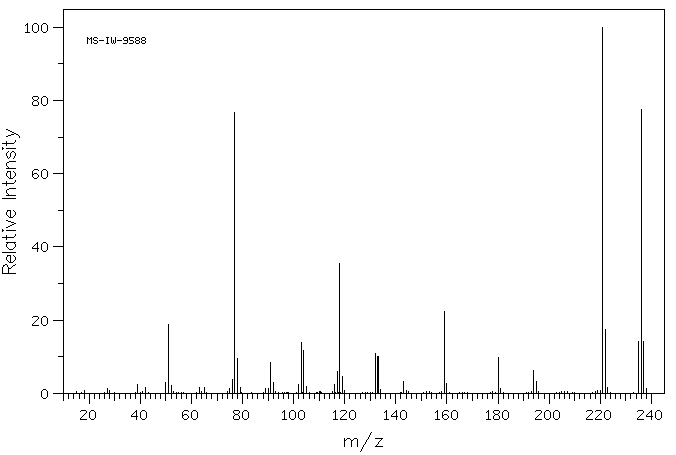

Mass

MS-IW-9588
acetophenone azine
C16H16N2            (Mass of molecular ion:    236)

   Source Temperature: 150 °C
   Sample Temperature: 120 °C
   Direct, 75 eV

      27.0       1.3
      39.0       2.3
      42.0       1.7
      50.0       2.9
      51.0      18.8
      52.0       2.1
      63.0       1.5
      65.0       1.5
      75.0       1.2
      76.0       3.8
      77.0      76.7
      78.0       9.6
      79.0       1.6
      89.0       1.3
      90.0       1.2
      91.0       8.5
      92.0       3.1
     102.0       2.3
     103.0      13.9
     104.0      11.8
     105.0       2.0
     116.0       2.5
     117.0       5.9
     118.0      35.4
     119.0       4.7
     132.0      10.9
     133.0      10.1
     134.0       1.0
     143.0       3.2
     159.0      22.4
     160.0       2.7
     180.0       9.7
     181.0       1.4
     194.0       6.3
     195.0       3.2
     221.0     100.0
     222.0      17.4
     223.0       1.5
     235.0      14.3
     236.0      77.6
     237.0      14.3
     238.0       1.3

KBr disc
