Ammonium Polyphosphate: Overview and Applications in Fire Safety
Jul 3,2024
General Description
Ammonium polyphosphate is an inorganic flame retardant widely used in materials to enhance fire resistance. It can be classified into short-chain and long-chain forms based on chain length, with the latter offering greater thermal stability. Ammonium polyphosphate works by promoting char formation and acting as an intumescent. Recently, surface-modified with bio-based arginine has been shown to significantly improve its flame retardant properties when integrated into epoxy resins. This modification enhances char-forming capabilities and thermal stability, leading to superior flame retardance and improved mechanical properties. Ammonium polyphosphate, especially when modified with arginine, is crucial for developing advanced, flame-retardant materials for various industries.

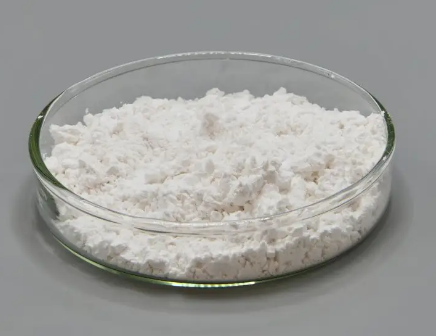

Figure 1. Ammonium polyphosphate
Overview
Ammonium polyphosphate is a highly effective, inorganic flame retardant, often used in a variety of materials to enhance fire resistance. Its chemical structure comprises chains of phosphate units linked by ammonia. The length of these chains varies, which affects the material's solubility and thermal stability. Ammonium polyphosphate is typically classified into two main forms based on its chain length: short-chain Ammonium polyphosphate, which is more water-soluble and less thermally stable, and long-chain Ammonium polyphosphate, which offers greater thermal stability and lower solubility. This flame retardant works primarily by promoting char formation and acting as an intumescent, meaning it expands when exposed to heat. This expansion forms a protective barrier that helps to insulate the material from further flame penetration and heat. Consequently, Ammonium polyphosphate is widely used in the plastics and paint industries to improve fire safety standards. Environmentally, Ammonium polyphosphate is considered relatively safe due to its inorganic nature, leading to minimal off-gassing of volatile organic compounds (VOCs) when compared to organic alternatives. Additionally, it is often preferred for applications requiring robust fire safety measures without significant environmental impact. In industrial applications, Ammonium polyphosphate is commonly incorporated into thermoplastics, thermosets, coatings, and textiles. Its versatility and efficiency in improving material fire resistance make it a valuable component in fire safety management strategies. 1
Applications in Fire Safety
Enhancing Flame Retardancy with Surface Modification
Ammonium polyphosphate is a widely used flame retardant, particularly effective in enhancing the fire safety of materials such as epoxy resins. In recent advancements, ammonium polyphosphate has been surface-modified with bio-based arginine to improve its effectiveness as an intumescent flame retardant. This modification process involves attaching arginine to the surface of ammonium polyphosphate through a cation exchange reaction, a method confirmed by various analytical techniques including Fourier transform infrared spectroscopy and X-ray photoelectron spectroscopy.
Testing and Validation in Flame Retardance
The modified ammonium polyphosphate, when integrated into epoxy resin, significantly enhances the material's flame retardance. This is achieved by the arginine acting as an efficient carbon source, enhancing the char-forming capability of the ammonium polyphosphate. Thermogravimetric analysis has shown that this modification leads to improved thermal stability and a higher degree of carbonization, which is crucial for effective flame retardance. In practical applications, the efficacy of ammonium polyphosphate in flame retardance is measured through tests such as the limit oxygen index, vertical burning tests, and cone calorimeter tests. The results from these tests indicate that epoxy resins containing the modified ammonium polyphosphate exhibit superior flame retardant properties. For instance, at a certain concentration, the modified ammonium polyphosphate significantly reduces the peak heat release rate and total smoke production compared to resins without this additive.
Synergistic Benefits in Mechanical and Fire Performance
Furthermore, the presence of ammonium polyphosphate modified with arginine not only improves the flame retardance but also the overall mechanical properties of the epoxy resin, as evidenced by differential scanning calorimetry and tensile tests. This dual benefit makes ammonium polyphosphate an invaluable component in the formulation of flame retardant epoxy resins, offering both safety and performance enhancements. Overall, the application of ammonium polyphosphate in fire safety is further enhanced by its modification with arginine, making it a critical component in developing advanced, flame-retardant materials. This innovative approach not only improves the material's resistance to fire but also contributes to safer, more durable, and effective applications in various industries. 2
Reference
1. Phosphoric acid, ammonium salt (1:3). National Center for Biotechnology Information (2024). PubChem Compound Summary for CID 159282.
2. Cheng C, Wang Y, Lu Y, et al. Bio-based arginine surface-modified ammonium polyphosphate: an efficient intumescent flame retardant for epoxy resin. RSC Adv. 2022; 12(15): 9223-9237.
